The 1835 Town Hall requires universal access for all. In our capital requests for 2020, we have estimated $100,000 to accomplish this and we will be seeking 50-50 grant matching for the universal access design and project which will include a passenger elevator or enclosed lift between the first and second floors and possibly an open wheelchair lift providing access to the stage. We will also work to accommodate universal access to the front entrance.
We understand that a single industrial elevator might cost between $80,000 and $150,000. In our research and our meetings with Thomas P. Hopkins, Executive Director of the Massachusetts Architectural Access Board, we learned of many other options for providing access. An industrial elevator would require an addition to the building. The Committee believes this is overkill for our Town Hall.

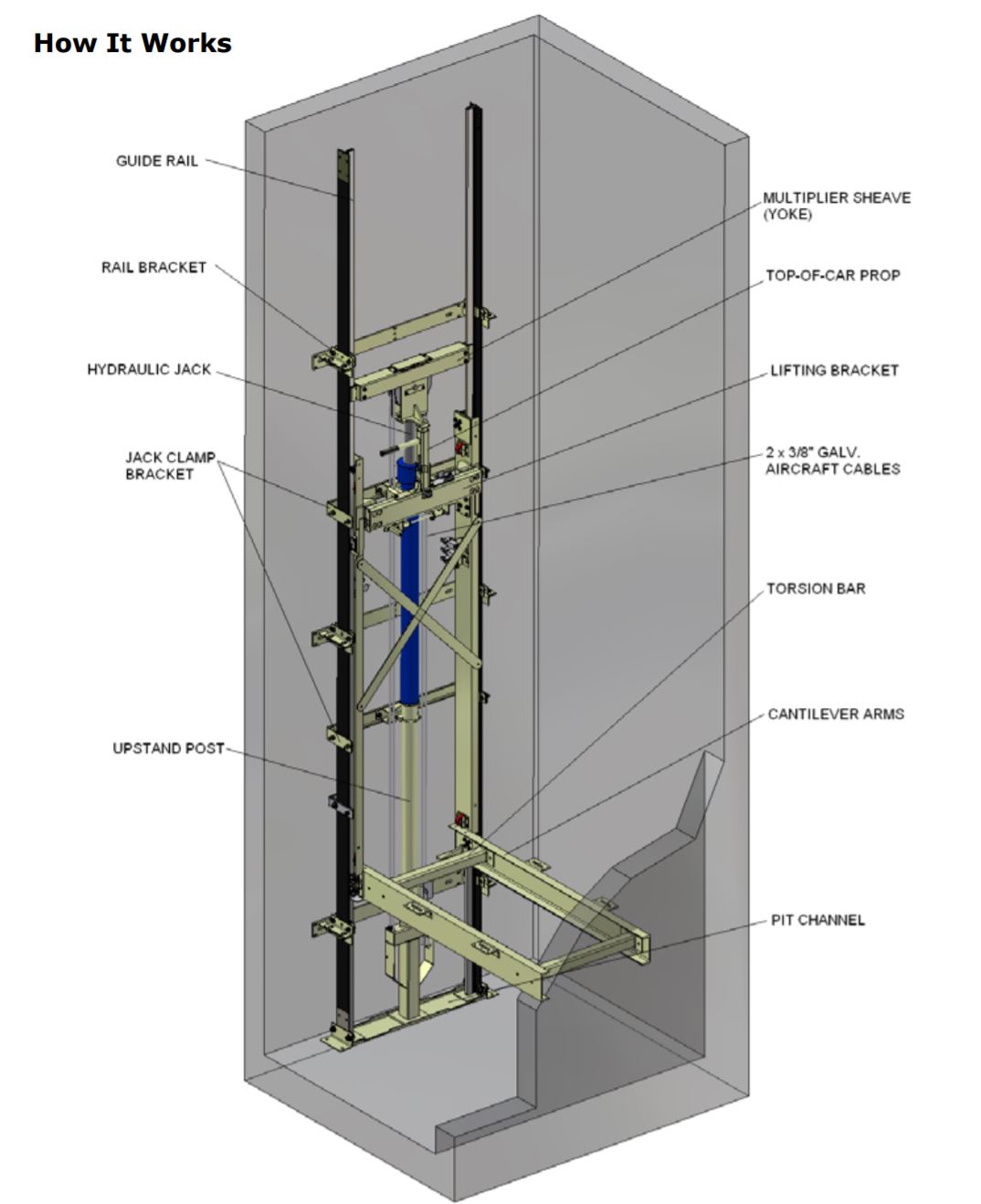

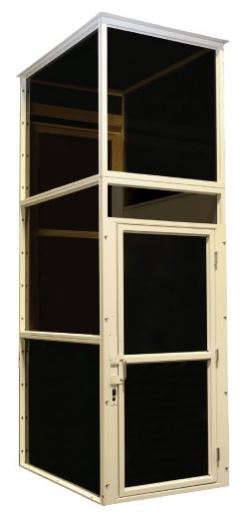

We believe there are less expensive opportunities to provide universal access. Specifically, a cross between an elevator and a lift or hydraulic limited use – limited access (LULA) elevators. Pictured here is an example of such a device. A LULA would fit within the stairwell and closet area of our Town Hall eliminating the need for an external structure. Pricing of a LULA begins at around $12,000 but we project the cost to be near $25,000. It can fit into an area 42” x 60”.
LULA’s do not require the large pit or head room required in a normal elevator yet are certified for up to 1,400 pounds. They provide all the safety features of elevators including emergency back-up power, safety brake, floor leveling, emergency alarms and stop and overspeed valve.
They are basically fully enclosed vertical lifts with all the safety features and features you would find in an elevator.
LULA elevators are the perfect hybrid that safely transports persons and their wheelchairs without taking up a substantial amount of space. In fact, the amount of space required is only half that of a standard elevator and it can be built from wood or sheetrock with no cement hoist-way required. Only a 14″ pit is required with 102″ overhead for existing buildings.
You can learn about LULA’s at these sites if you would like to know more.
